srsRAN 5G network in COSMOS SB1

srsRAN is an open-source software radio suite for 4G/5G provided by SRS(Software Radio Systems). The srsRAN suite includes: srsUE - a full-stack SDR 4G/5G UE application srsENB - a full-stack SDR 4G/5G e(g)NodeB application srsEPC - a light-weight 4G core network implementation with MME, HSS and S/P-GW Source code for srsRAN can be found ​here and documentation can be found ​here

Description

This tutorial contains instructions for setting up a 4G/5G network in COSMOS SB1.

Prerequisites

In order to access the test bed, create a reservation and have it approved by the reservation service. Access to the resources is granted after the reservation is confirmed. Please follow the process shown on the COSMOS getting started page to get started.

Resources required

1 COSMOS server, 1 USRP (N310/X310), node equipped with 5G modems and/or node equipped with 5G phones in ​COSMOS SB1 domain

Tutorial Setup

Follow the steps below to gain access to the Weeks hall console and set up nodes with appropriate images.

  1. If you don't have one already, sign up for a ​COSMOS account
  2. Create a resource reservation on sandbox 1
  3. Login into sandbox 1 console (console.sb1.cosmos-lab.org) with two SSH sessions.
  4. Make sure all the resources in the domain are turned off:
    omf tell -a offh -t system:topo:allres
    For this tutorial we will be using a server srv1-lg1, USRP N310 sdr1-s1-lg1, and sdr2-md1 that has a ​Waveshare SIM8200-EA and Quectel RM510Q-GL attached over USB.
  5. Load srsran-cosmos.ndz on srv1-lg1
    omf load -i srsRAN-cosmos.ndz -t srv1-lg1

    omf load -i 5G-UE-cosmos.ndz -t sdr2-md1
  6. Turn all the required resources on and check the status
    omf tell -a on -t srv1-lg1,sdr2-md1,sdr1-s1-lg1

    omf stat -t system:topo:allres
  7. ssh to the nodes

Tutorial Execution

Check the USRP

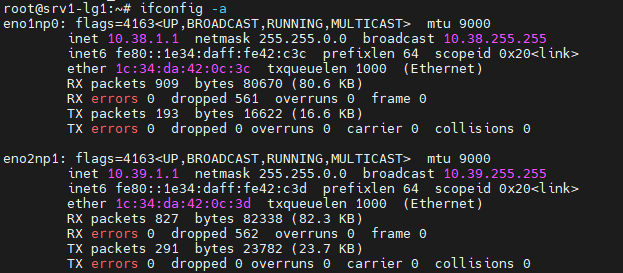

  • Upon logging into srv1-lg1, run the shell script eth_config.sh that sets up appropriate IP addresses for the Ethernet interfaces and network buffer sizes on the server.
    root@srv1-lg1:~# ./eth_config.sh
net.core.rmem_max = 62500000
net.core.wmem_max = 62500000
root@srv1-lg1:~# ifconfig -a
eno1np0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 9000
        inet 10.38.1.1  netmask 255.255.0.0  broadcast 10.38.255.255
        inet6 fe80::1e34:daff:fe42:c3c  prefixlen 64  scopeid 0x20<link>
        ether 1c:34:da:42:0c:3c  txqueuelen 1000  (Ethernet)
        RX packets 909  bytes 80670 (80.6 KB)
        RX errors 0  dropped 561  overruns 0  frame 0
        TX packets 193  bytes 16622 (16.6 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eno2np1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 9000
        inet 10.39.1.1  netmask 255.255.0.0  broadcast 10.39.255.255
        inet6 fe80::1e34:daff:fe42:c3d  prefixlen 64  scopeid 0x20<link>
        ether 1c:34:da:42:0c:3d  txqueuelen 1000  (Ethernet)
        RX packets 827  bytes 82338 (82.3 KB)
        RX errors 0  dropped 562  overruns 0  frame 0
        TX packets 291  bytes 23782 (23.7 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

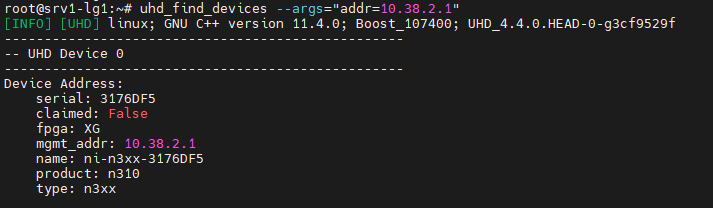

  • With the interfaces configured as above, the server should be able to access the SDRs in the domain. Test with
    root@srv1-lg1:~# uhd_find_devices --args="addr=10.38.2.1"
[INFO] [UHD] linux; GNU C++ version 11.4.0; Boost_107400; UHD_4.4.0.HEAD-0-g3cf9529f
--------------------------------------------------
-- UHD Device 0
--------------------------------------------------
Device Address:
    serial: 3176DF5
    claimed: False
    fpga: XG
    mgmt_addr: 10.38.2.1
    name: ni-n3xx-3176DF5
    product: n310
    type: n3xx

Setup 5G Core

  • For this tutorial, we use ​Open5GS Core. All the components of the core are setup to run as systemd services. To reconfigure the services, please refer this ​guide.
  • Follow the AMF log
    root@srv1-lg1:~# tail -f /var/log/open5gs/amf.log

    Open5GS daemon v2.7.1

04/04 20:47:27.874: [app] INFO: Configuration: '/etc/open5gs/amf.yaml' (../lib/app/ogs-init.c:133)
04/04 20:47:27.874: [app] INFO: File Logging: '/var/log/open5gs/amf.log' (../lib/app/ogs-init.c:136)
04/04 20:47:27.877: [metrics] INFO: metrics_server() [http://127.0.0.5]:9090 (../lib/metrics/prometheus/context.c:299)
04/04 20:47:27.877: [sbi] INFO: NF Service [namf-comm] (../lib/sbi/context.c:1841)
04/04 20:47:27.877: [sbi] INFO: nghttp2_server() [http://127.0.0.5]:7777 (../lib/sbi/nghttp2-server.c:414)
04/04 20:47:27.908: [amf] INFO: ngap_server() [127.0.0.5]:38412 (../src/amf/ngap-sctp.c:61)
04/04 20:47:27.908: [sctp] INFO: AMF initialize...done (../src/amf/app.c:33)

Run srsran gNB

  • Run the gnb application in band n41 at 20MHz with 1T1R.
    root@srv1-lg1:~# gnb -c ~/srsRAN_Project/configs/gnb_rf_n310_tdd_n41_20mhz.yml

--== srsRAN gNB (commit 40b17b429) ==--


The PRACH detector will not meet the performance requirements with the configuration {Format B4, ZCZ 0, SCS 30kHz, Rx ports 1}.
Lower PHY in quad executor mode.
N2: Connection to AMF on 127.0.0.5:38412 completed
Cell pci=1, bw=20 MHz, 1T1R, dl_arfcn=518670 (n41), dl_freq=2593.35 MHz, dl_ssb_arfcn=517710, ul_freq=2593.35 MHz

Available radio types: uhd and zmq.
[INFO] [UHD] linux; GNU C++ version 11.4.0; Boost_107400; UHD_4.4.0.HEAD-0-g3cf9529f
[INFO] [LOGGING] Fastpath logging disabled at runtime.
Making USRP object with args 'type=n3xx,addr=10.39.3.1,master_clock_rate=122.88e6,send_frame_size=8000,recv_frame_size=8000'
[INFO] [MPMD] Initializing 1 device(s) in parallel with args: mgmt_addr=10.39.3.1,type=n3xx,product=n310,serial=3196937,name=ni-n3xx-3196937,fpga=XG,claimed=False,addr=10.39.3.1,master_clock_rate=122.88e6,send_frame_size=8000,recv_frame_size=8000
[INFO] [MPM.PeriphManager] init() called with device args `fpga=XG,master_clock_rate=122.88e6,mgmt_addr=10.39.3.1,name=ni-n3xx-3196937,product=n310,recv_frame_size=8000,send_frame_size=8000,clock_source=internal,time_source=internal'.
[WARNING] [0/Radio#0] Attempting to set tick rate to 0. Skipping.
==== gNB started ===
Type <h> to view help
  • In the AMF log, you should see the gNB connected to the core
    04/04 21:22:32.078: [amf] INFO: gNB-N2 accepted[127.0.0.1]:52741 in ng-path module (../src/amf/ngap-sctp.c:113)
04/04 21:22:32.079: [amf] INFO: gNB-N2 accepted[127.0.0.1] in master_sm module (../src/amf/amf-sm.c:757)
04/04 21:22:32.090: [amf] INFO: [Added] Number of gNBs is now 1 (../src/amf/context.c:1236)

UEs

  • As the base station runs, the modems can be seen registering at the AMF
    04/04 21:31:17.641: [gmm] INFO: [imsi-310014000000011] Registration complete (../src/amf/gmm-sm.c:2313)
04/04 21:31:17.641: [amf] INFO: [imsi-310014000000011] Configuration update command (../src/amf/nas-path.c:591)


04/04 21:31:18.189: [gmm] INFO: [imsi-310014000000013] Registration complete (../src/amf/gmm-sm.c:2313)
04/04 21:31:18.189: [amf] INFO: [imsi-310014000000013] Configuration update command (../src/amf/nas-path.c:591)
  • Run connection manager scripts on sdr2-md1 for the modems to establish PDU sessions
    root@sdr2b-md1:~/SIM8200_code/Goonline# ./simcom-cm
[04-04_16:14:40:249] Build Version: 2020-07-14 10:20:15
[04-04_16:14:40:249] SIMCOM_CM START...
[04-04_16:14:40:249] ./simcom-cm profile[1] = (null)/(null)/(null)/0, pincode = (null)
[04-04_16:14:40:249] Find /sys/bus/usb/devices/2-1 idVendor=2c7c idProduct=0800
[04-04_16:14:40:249] Cannot open directory: /sys/bus/usb/devices/2-1:1.5/net, errno: 2 (No such file or directory)
[04-04_16:14:40:250] Find /sys/bus/usb/devices/2-2 idVendor=1e0e idProduct=9001
[04-04_16:14:40:250] Find /sys/bus/usb/devices/2-2:1.5/net/wwan0
[04-04_16:14:40:250] Find usbnet_adapter = wwan0
[04-04_16:14:40:250] Find /sys/bus/usb/devices/2-2:1.5/usbmisc/cdc-wdm0
[04-04_16:14:40:250] Find qmichannel = /dev/cdc-wdm0
[04-04_16:14:40:251] netcard driver = qmi_wwan
[04-04_16:14:40:254] cdc_wdm_fd = 7
[04-04_16:14:40:342] Get clientWDS = 15
[04-04_16:14:40:374] Get clientDMS = 1
[04-04_16:14:40:406] Get clientNAS = 2
[04-04_16:14:40:438] Get clientUIM = 1
[04-04_16:14:40:470] Get clientWDA = 1
[04-04_16:14:40:502] requestBaseBandVersion MPSS.HI.2.0.c3-00246-SDX55_CPEALL_PACK-1  1  [Oct 26 2020 16:00:00]
[04-04_16:14:40:566] requestGetSIMStatus SIMStatus: SIM_READY
[04-04_16:14:40:598] requestGetProfile[1] cosmos-5G///0
[04-04_16:14:40:630] requestRegistrationState2 MCC: 310, MNC: 14, PS: Attached, DataCap: NR5G
[04-04_16:14:40:662] requestQueryDataCall IPv4ConnectionStatus: DISCONNECTED
[04-04_16:14:40:726] requestRegistrationState2 MCC: 310, MNC: 14, PS: Attached, DataCap: NR5G
[04-04_16:14:41:238] requestSetupDataCall WdsConnectionIPv4Handle: 0xf9438980
[04-04_16:14:41:302] requestQueryDataCall IPv4ConnectionStatus: CONNECTED
[04-04_16:14:41:334] ifconfig wwan0 up
[04-04_16:14:41:339] Fail to access /usr/share/udhcpc/default.script, errno: 2 (No such file or directory)
[04-04_16:14:41:339] busybox udhcpc -f -n -q -t 5 -s /usr/share/udhcpc/default.script -i wwan0
udhcpc: started, v1.30.1
udhcpc: sending discover
udhcpc: sending select for 10.45.0.6
udhcpc: lease of 10.45.0.6 obtained, lease time 7200


    root@sdr2b-md1:~/quectel-CM_0319# ./quectel-CM -s cosmos-5G
[04-04_16:19:54:415] QConnectManager_Linux_V1.6.6_beta0319
[04-04_16:19:54:416] Find /sys/bus/usb/devices/2-1 idVendor=0x2c7c idProduct=0x800, bus=0x002, dev=0x004
[04-04_16:19:54:417] Auto find qmichannel = /dev/cdc-wdm1
[04-04_16:19:54:417] Auto find usbnet_adapter = wwan1
[04-04_16:19:54:417] netcard driver = cdc_mbim, driver version = 5.15.0-78-generic
[04-04_16:19:54:417] Modem works in MBIM mode
[04-04_16:19:54:421] cdc_wdm_fd = 7
[04-04_16:19:54:421] mbim_open_device()
[04-04_16:19:54:935] mbim_device_caps_query()
[04-04_16:19:54:967] DeviceId:     867034040030133
[04-04_16:19:54:967] FirmwareInfo: RM510QGLHAR11A03M4G
[04-04_16:19:54:967] HardwareInfo: RM510QGLHA_VB
[04-04_16:19:54:967] mbim_device_services_query()
[04-04_16:19:55:031] mbim_set_radio_state( 1 )
[04-04_16:19:55:063] HwRadioState: 1, SwRadioState: 1
[04-04_16:19:55:063] mbim_subscriber_status_query()
[04-04_16:19:55:095] SubscriberId: 310014000000011
[04-04_16:19:55:095] SimIccId:     8901310014000000114F
[04-04_16:19:55:095] SubscriberReadyState NotInitialized -> Initialized
[04-04_16:19:55:095] mbim_register_state_query()
[04-04_16:19:55:127] RegisterState Unknown -> Home
[04-04_16:19:55:127] mbim_packet_service_query()
[04-04_16:19:55:159] PacketServiceState Unknown -> Attached
[04-04_16:19:55:159] CurrentDataClass = Custom
[04-04_16:19:55:159] mbim_query_connect(sessionID=0)
[04-04_16:19:55:191] ActivationState Unknown -> Deactivated
[04-04_16:19:55:191] ip addr flush dev wwan1
[04-04_16:19:55:197] ip link set dev wwan1 down
[04-04_16:19:55:204] mbim_set_connect(onoff=1, sessionID=0)
[04-04_16:19:55:319] ActivationState Deactivated -> Activated
[04-04_16:19:55:319] mbim_ip_config(sessionID=0)
[04-04_16:19:55:351] < SessionId = 0
[04-04_16:19:55:351] < IPv4ConfigurationAvailable = 0xf
[04-04_16:19:55:351] < IPv6ConfigurationAvailable = 0x0
[04-04_16:19:55:351] < IPv4AddressCount = 0x1
[04-04_16:19:55:351] < IPv4AddressOffset = 0x3c
[04-04_16:19:55:351] < IPv6AddressCount = 0x0
[04-04_16:19:55:351] < IPv6AddressOffset = 0x0
[04-04_16:19:55:351] < IPv4 = 10.45.0.7/28
[04-04_16:19:55:351] < gw = 10.45.0.8
[04-04_16:19:55:351] < dns1 = 8.8.8.8
[04-04_16:19:55:351] < dns2 = 8.8.4.4
[04-04_16:19:55:351] < ipv4 mtu = 1400
[04-04_16:19:55:383] ip link set dev wwan1 up
[04-04_16:19:55:390] ip -4 address flush dev wwan1
[04-04_16:19:55:393] ip -4 address add 10.45.0.7/28 dev wwan1
[04-04_16:19:55:395] ip -4 route add default via 10.45.0.8 dev wwan1

Throughput test

  • Make sure wwan interfaces on sdr2-md1 have the right IP addresses obtained above
    wwan0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST>  mtu 1400
        inet 10.45.0.6  netmask 255.255.0.0  destination 10.45.0.6
        inet6 fe80::82e2:1b17:b212:b481  prefixlen 64  scopeid 0x20<link>
        unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00  txqueuelen 1000  (UNSPEC)
        RX packets 244834  bytes 342703175 (342.7 MB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 28435  bytes 1521098 (1.5 MB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

wwan1: flags=4291<UP,BROADCAST,RUNNING,NOARP,MULTICAST>  mtu 1500
        inet 10.45.0.7  netmask 255.255.255.252  broadcast 0.0.0.0
        inet6 fe80::c037:1fff:fe08:4f16  prefixlen 64  scopeid 0x20<link>
        ether c2:37:1f:08:4f:16  txqueuelen 1000  (Ethernet)
        RX packets 4  bytes 336 (336.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 107  bytes 8678 (8.6 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
  • iperf3 server
    root@sdr2b-md1:~# iperf3 -s -B 10.45.0.6
-----------------------------------------------------------
Server listening on 5201
-----------------------------------------------------------
  • iperf3 client on srv1-lg1
    root@srv1-lg1:~# iperf3 -c 10.45.0.6 -i 1 -t 50
Connecting to host 10.45.0.6, port 5201
[  5] local 10.45.0.1 port 40004 connected to 10.45.0.6 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  1.30 MBytes  10.9 Mbits/sec    3   52.7 KBytes
.
.
.
[  5]  47.00-48.00  sec  1.42 MBytes  11.9 Mbits/sec    3   36.9 KBytes
[  5]  48.00-49.00  sec  1.23 MBytes  10.4 Mbits/sec    3   44.8 KBytes
[  5]  49.00-50.00  sec  1.48 MBytes  12.4 Mbits/sec    2   47.4 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-50.00  sec  83.3 MBytes  14.0 Mbits/sec  179             sender
[  5]   0.00-50.04  sec  83.0 MBytes  13.9 Mbits/sec                  receiver
Last modified 5 weeks ago Last modified on Apr 4, 2025, 10:26:19 PM

Attachments (2)

Download all attachments as: .zip

Note: See TracWiki for help on using the wiki.
